March 5, 2007 - Stummelflitzer Aileron Cable Clearances

Group,

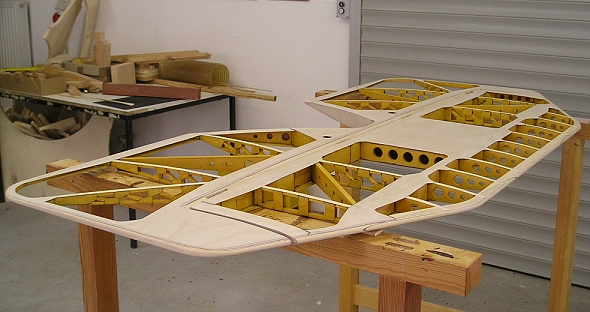

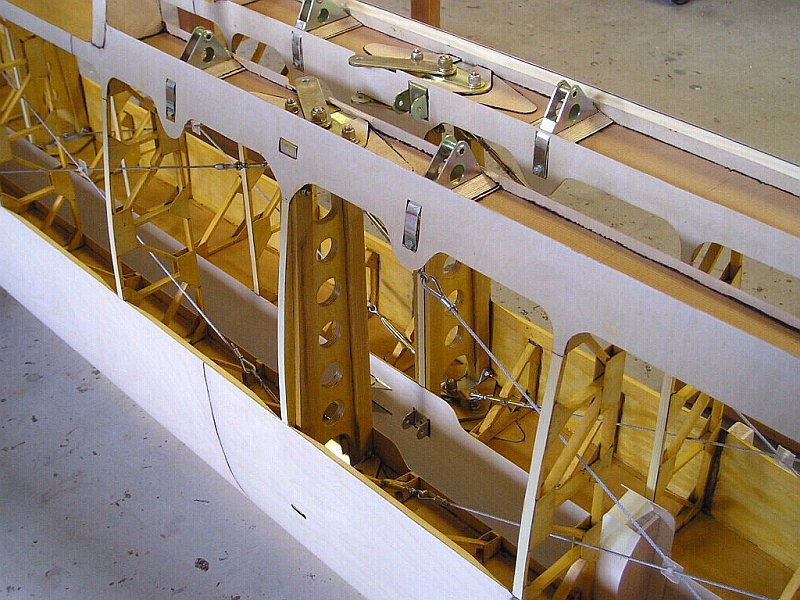

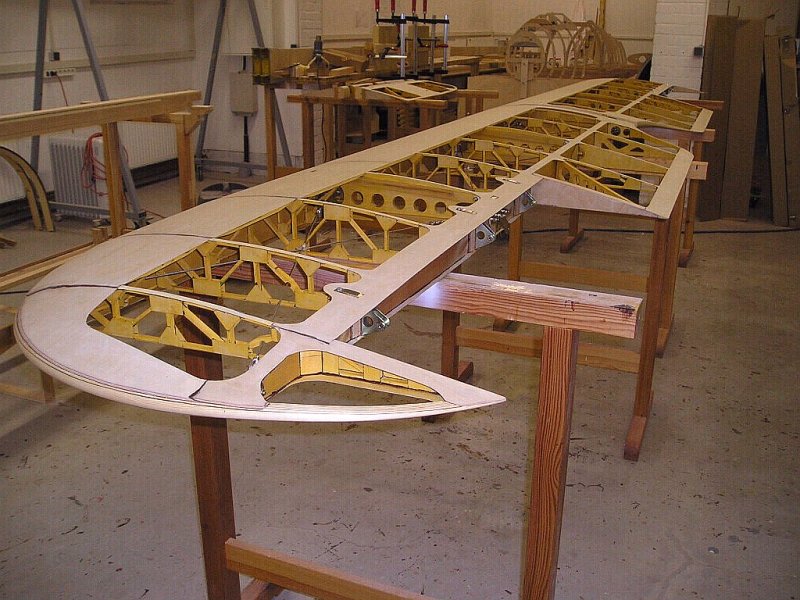

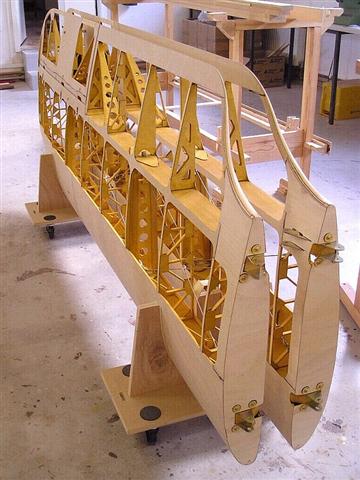

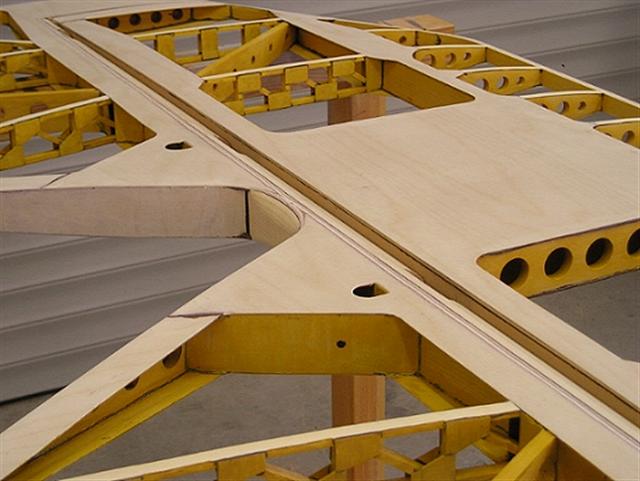

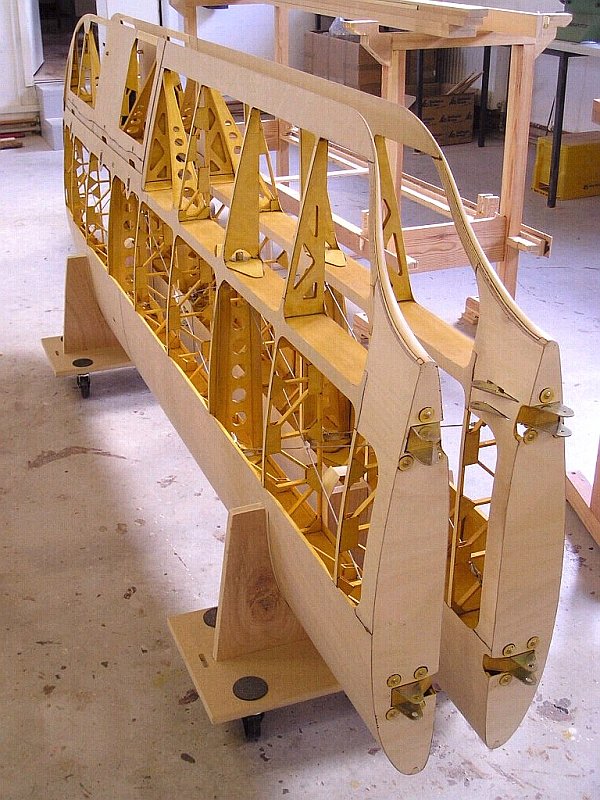

Here are three photographs of the exceptionally beautiful Stummelflitzer Type S wings made by Sascha Heuser. Note the modified 'box' weldment aileron hinges and the additional plywood extending from the 'D' boxes on the upper wing surfaces to improve the airfoil here. Small additional triangular riblets may be seen which support this as well as edge-stiffening to the ply. There is also additional ply at the tips and in other areas. It will seem a shame to cover them.

Note the interesting 'vintage' fuselage in the background.

Lynn

May 28, 2007 - German Z-1S

May 28, 2007 - German Z-1S

Group,

Here are three pictures of Wilfried Wesemann's Stummelfitzer Z-1S. Power is likely to be by Goebler-Hirth.

Lynn

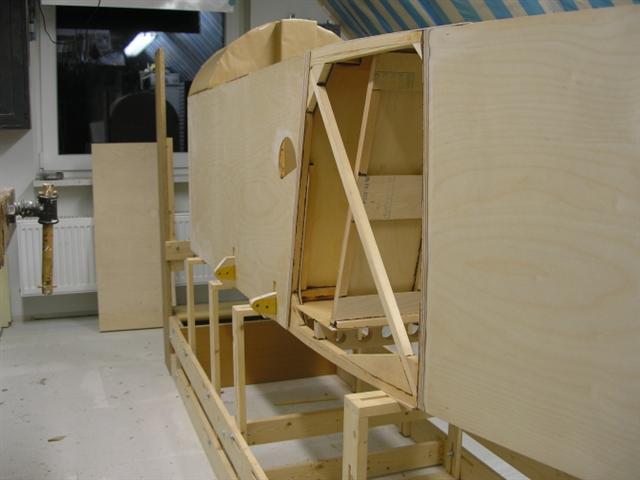

Note the foot step on this Z-1S. This is a feature of the Z-2, Goblin , Z-1R etc, but a first on a Z-1S.

May 31, 2007 - New Cowl

Group,

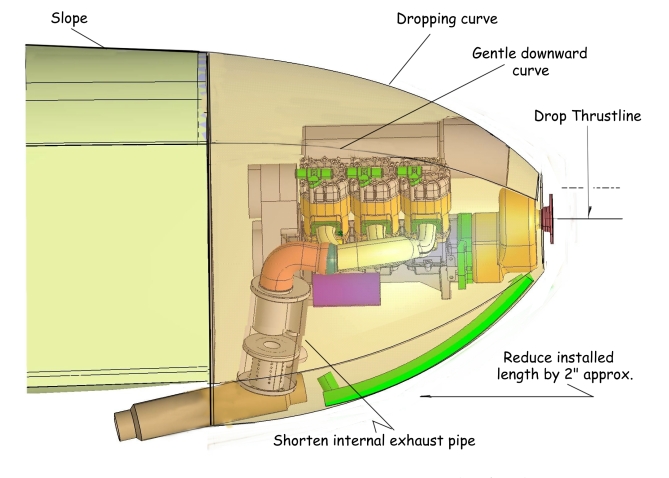

Attached herewith is a side view of the proposed GoeblerHirth motor in a Z-1S. I have made a few changes to the elevation provided by Wilfried to create a more harmonious shape and near-bullet cowl, or as far as is possible wth the light engine. Here is the first attempt.

Lynn

June 2, 2007 - Goebler-Hirth Cowl

Group,

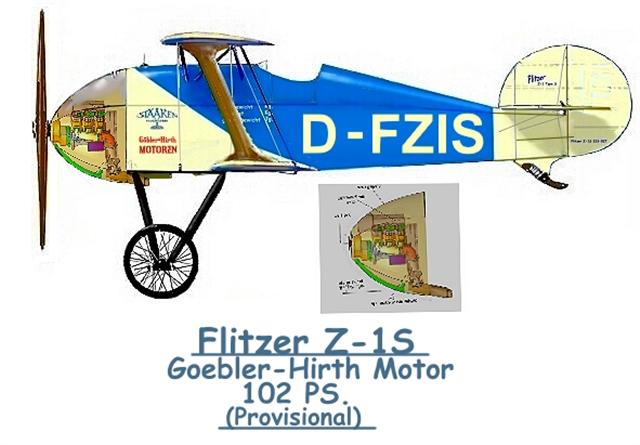

Here's a provisional illustration for the Goebler-Hirth + PSRU installation with the adapted bullet nose. I think this is quite practical with the batteries located well forward. Air-extraction louvres are used to improve overall cooling an under-cowl temperatures.

Lynn

March 1, 2009 - Stummelflitzer fuel tank

Group,

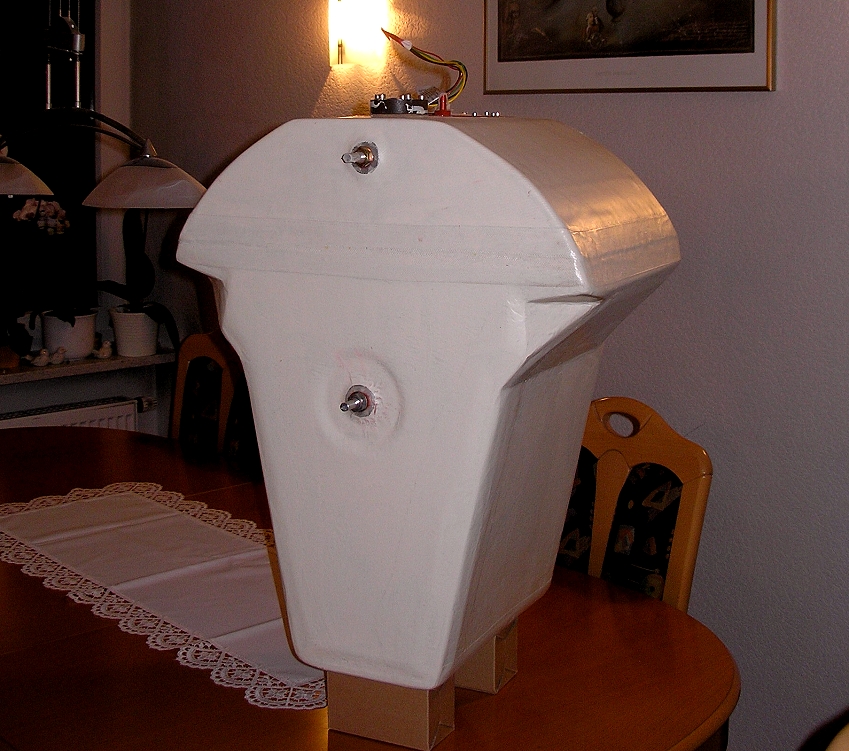

Here is a completely new fibreglass fuel tank designed by Wilfried Wesemann for his Stummelflitzer Z-1S in Germany. The tank is in two compartments: the upper section being 66 litres and the 'sump' being 69 litres capacity.

Wilfried's Z-1S is another exceptionally well built aeroplane.

Lynn

March 2, 2009 - Z-1S Cabane

Group,

Here's a lovely piece of work from Wilfried Wesemann.

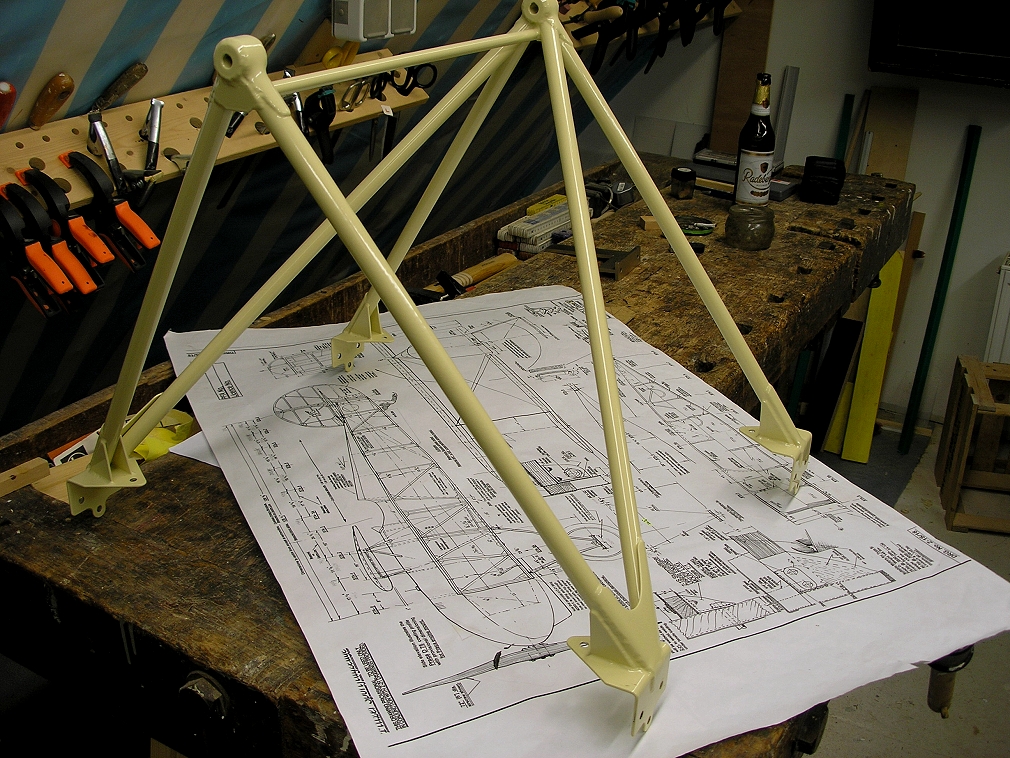

This is his cabane for the Stummelflitzer Z-1S, made from Krupps Stahl!

More to come later.

Lynn

March 3, 2009 - Tailbay and skid view

Group,

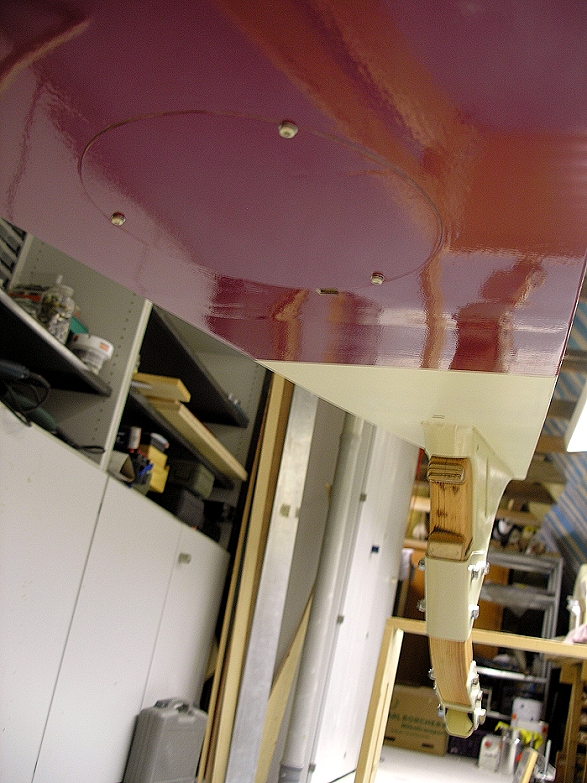

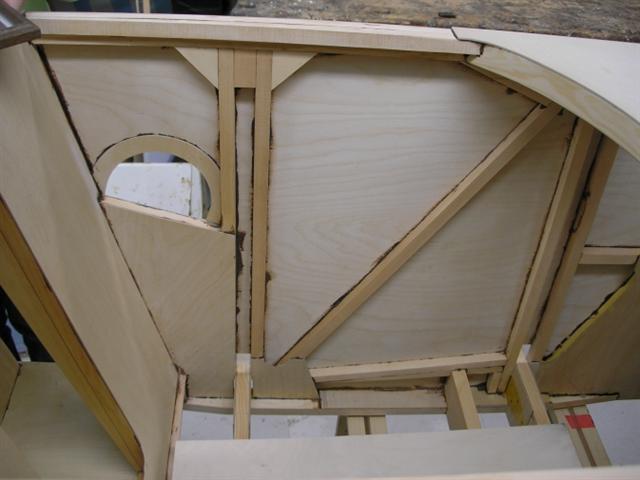

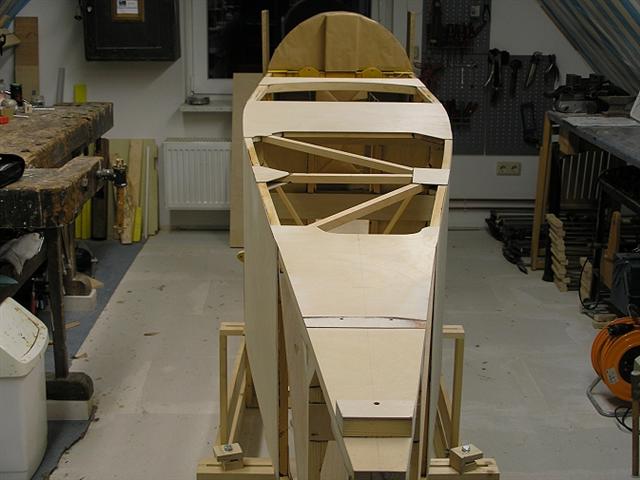

Here's another picture of Wilfried Wesemann's superb Stummelflitzer Type S airframe.

It seems to be painted red and light cream or ivory white. Let's see the whole fuselage, Wilfried, bitte!

Lynn

March 3, 2009 - Stummelflitzer details and rod-operated controls

Group,

Herewith the last of the recent pictures of Wilfried's Z-1S.

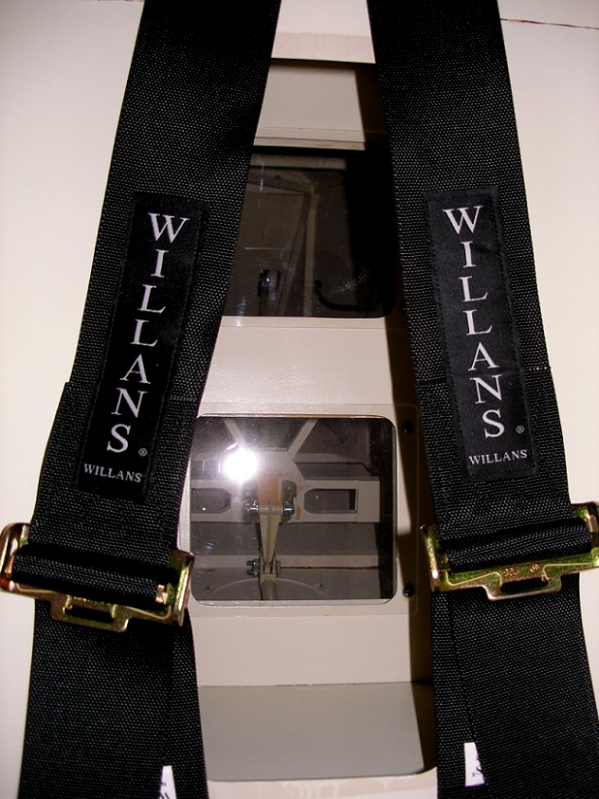

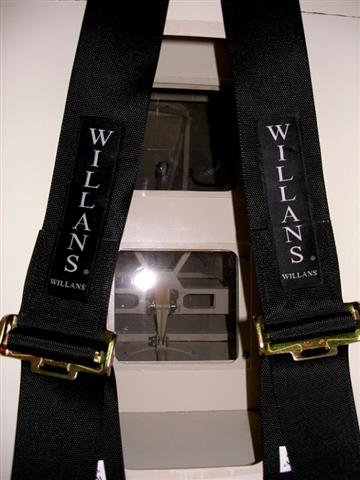

Note the clear inspection panels in the seat back revealing the rod-operated elevator controls which are unique to Wilfried's aeroplane.
